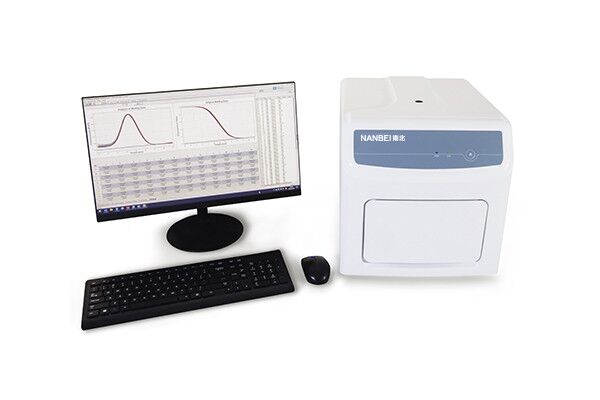

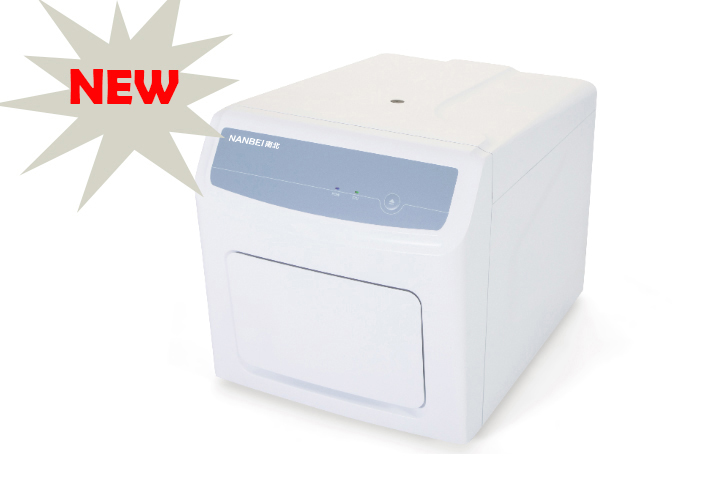

96 Well Real-time PCR system

As a necessary choice for quantitative analysis of molecular biology, real-time PCR system has been widely used in vario

96 Well Real-time PCR system

    As a necessary choice for quantitative analysis of molecular biology, real-time PCR system has been widely used in various fields such as scientific research, clinical detection and diagnosis, quality and safety testing, and forensic applications.



    Up to 6 fluorescence detection channels allowing multiplex PCR.

    Effectively reduce multi-color crosstalk and edge effect, no ROX correction required.

    New optical scanning detection system

    Innovative scanning method and time-resolved signal separation technology

    Unique edge temperature compensation technology

    User-friendly software


    Temperature control system
    Sample capacity96
    Reaction volume10-50 μl
    Thermal cycle technologyPeltier
    Max. Heating/Cooling rate6.0° C/s
    Heating temperature range4 – 100 °C
    Temperature accuracy± 0.2°C
    Temperature uniformity±0.2℃ @60℃ ,  ±0.3℃ @95℃
    Temperature gradient setting range30–100°C
    Temperature gradient difference setting range1 – 36°C
    Detection system
    Excitation light source4/6 monochrome high efficiency LEDs
    Detection devicePMT
    Detection modeTime-resolved signal separating technology
    Excitation/detection wavelength range455-650nm/510-715nm
    Fluorescent channels4/6 channels
    Supported dyeFAM/SYBR Green, VIC/JOE/HEX/TET, ABY/NED/TAMRA/Cy3, JUN, ROX/Texas Red, Mustang Purple, Cy5/LIZ
    SensitivitySingle copy gene
    Resolution1.33 folds copy number difference can be distinguished in single-plex qPCR
    Dynamic range10 orders of magnitude copies
