Thermal Cycler PCR machine

Introduction:This series product adopts 6 pieces custom-made US Marlow peltier, cycle times >200000. Steady performance

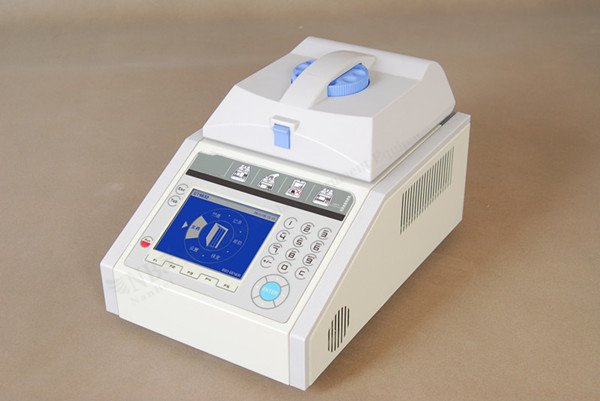

Thermal Cycler PCR machine

    Introduction:

    This series product adopts 6 pieces custom-made US Marlow peltier, cycle times >200000. Steady performance function, easy operation, economic.

    Features:

    1). The most advanced peltier-based semiconductor technology.

    2). High-performance universal power supply.

    3). Large 5.7-inch high-definition LCD display.

    4). Bilingual curve graphical interface.

    5). Power-down data protection.

    6). Metal shell, solid, practical, beautiful and generous.

    7). Stepless adjustable hot lid.

    8). Lid can be positioned at any angle.

    9). High sealing reaction zone to ensure stable and reliable experiment.

    Technical parameters:

    Model

    General

    GT9611(A)GT6021(B)

    GT9631(C)GT3841(D)

    Gradient

    GT9612(A)GT6022(B)

    GT9632(C) GT3842(D)



     Capacity96×0.2ml(A),60*0.5ml(B), 96×0.2ml+77×0.5ml(C) ,  384well(D)
     Temperature Range0~99.9℃
     Heating Rate4℃/s
     Cooling Rate3℃/s
     Uniformity≤±0.3℃
     Accuracy≤±0.2℃
     Display Resolution0.1℃
     Temperature ControlBlock\Tube
     Average Ramping Rate Adjustable0.1~2.5℃
     Gradient Uniformity/≤±0.3℃
    Gradient Accuracy/≤±0.2℃
     Gradient Temp. Range/30~99.9℃
     Gradient Spread/1~30℃
     Hot Lid Temperature30~110℃
     Hot Lid Height AdjustableStepless Adjustable
     Number of Programs200
     Max. No. of Segment9
     Max. No. of Step9
     Max. No. of Cycle99
     Time Increment/Decrement1 Sec ~ 9 Min 59 Sec
     Temp. Increment/Decrement0.1~9.9℃
     Pause Function Yes
     Auto Data Protection Yes
     Graphical Display Yes
     Hold at 4℃Forever
     LCD5.7inch,320×240 pels
     Communication2USB2.0 , RS232
     Dimensions392mm×262mm×252mm (L×W×H)
     Weight10kg
     Power Supply85~264VAC , 50~60Hz , 600 W
